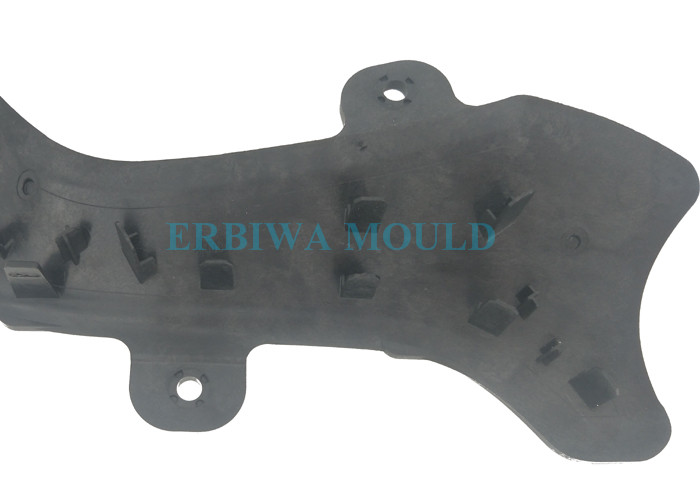

Plastic Injection Mould , Auto Interier Trim With Multi Material
for Volvo IP Center LHD
Detailed Product Description
| Name | Auto Interier Trim With Multi Material for Volvo IP Center LHD |
| Mould material | 45#, 50#, P20, H13, 718, 2738, NAK80, S136, SKD61 etc.(Hardness
35~55HRC) |
| Mould base | Standard mould base, LKM, HASCO etc. |
| Cavity | Single/multi |
| Runner | Hot/cold |
| Ejection system | Motor/hydraulic cylinder/stripping plate/angle pin, etc |
| Cooling system | In core baffle and in cavity plate chain drilling type cooling |
| Design software | UG, PROE, CAD, CAXA etc. |
| Plastic material | ABS, GPPS, HIPS, AS, MS, PMMA, PC, PA6, PA66, PA+GF, PVC, PP, PE,
TPE, TPU, TPR, LCP, PBT, PETG, PC/ABS, POM, PPS, PC, PPE, PPO, etc. |
| Surface treatment | Polish, texture, sand blasting, chrome plating |
| Mould life | 300,000-5,000,000 shots |
| Delivery time | 30-45 days |
| Pacakge | Standard export wooden case for injection mold |
| Specification | As per customer's requirements |
| Made for | VOLVO |
| Quality-guaranteed | Standard compenents are Meusburger |
| Service | Mould design, CNC processing,tooling, assemble service,
painting,etc |
| Testing Tool | Calipers, Micrometer, Plug gauge, Height Gauge, etc. |
Product Description
1. We provide the mold to produce the part of Volvo.
2. Plastic injection mold
3. water cooling or Beryllium bronze cooling, etc.
4. EDM, texture, high gloss polishing on the surface
5. Auto part mold for plastic parts.
Advantages of our auto car parts injection
We have a professional tooling design team with several years
experience
1. Various materials and short lead-time
2. Good steel and long lifetime .
3. We can supply "one-stop" service with molds opening, injection,
painting, screen printing, assembly and nice after-sales service in
long term
4. Full set of machines for mold making and injection molding
5. OEM&ODM service available
6. Mould's design based on tooling engineer from our company and
experienced with years in the dustry.
7. Mould's steel as per customers' requests such as NAK80,
S1369(H),2738, 718, 738 and etc.
8. Final products' materials' optional: ABS, PP, PE, POM,
PA6(66)+GF, PC, PMMA, HIPS, GPPS and etc.
9. Products' color: As the customer's requirments, any color is
possible, if they could provide us the color card schedule.
10. Relevant requirements reachable: RoHS, UL, or as the request.
11. Certifications Authorized: ISO9001&ISO14001 Certificated.
12. Japanese standard of QC management and Euramerican standard of
checking.
13. Service scope: Open mould, Injection, CNC processing, coating,
screen printing, assembly for finished products and so on.
14. Good cost and high effeciency of delivery.
Equipment Lists
| Equipment name | Qty(Set) | Model | Brand | Precision(μ) | Date of use(Year) | (x*y*z)mm |
| Miller | 1 | 8SS | TOPONE | 0.01mm | 2014 | 600*320*330 |
| Miller | 1 | SHCM-97A | GENTIGER | 0.01mm | 2016 | 650*350*360 |
| Grinder | 5 | SGM450 | SHUGUANG | 0.003mm | 2016 | 400*150*250 |
| Beam drill | 1 | Z305*16/1 | ZONJET | 1mm | 2016 | z=850 |
| Tapping machine | 1 | M3-M16 | SANWAVE | 1mm | 2016 | z=500 |
| Electrospark machining | 2 | cnc-edm-he130 | HANSPARK | 0.01mm | 2016 | 1300*600*400 |
| Electrospark machining | 1 | cnc-edm-he100 | HANSPARK | 0.01mm | 2016 | 1000*500*400 |
| Electrospark machining | 2 | cnc-edm-hp35 | HANSPARK | 0.01mm | 2016 | 350*250*300 |
| Wire-Cutting Machine | 1 | AQ360LS | SODICK | 0.005mm | 2010 | 360*250*220 |
| Wire-Cutting Machine | 1 | AQ550LS | SODICK | 0.005mm | 2010 | 550*350*320 |
| NCM miller | 1 | α-d14mia | FANUC | 0.005mm | 2016 | 500*400*330 |
| NCM miller | 1 | MXV1020 | YCM | 0.005mm | 2016 | 1020*520*540 |
| NCM miller | 1 | FV125A | YCM | 0.005mm | 2016 | 1270*520*540 |
| NCM miller | 1 | TV146B | YCM | 0.005mm | 2014 | 1400*620*630 |
| NCM miller | 1 | Hareford-1000 | HARFORD | 0.01mm | 2014 | 2000*1500*780 |
| NCM miller | 1 | TAKUMI | TAKUMI | 0.01mm | 2017 | 1600*1300*700 |
| CMM | 1 | INSPECTOR | HEXAGON | 0.002 | 2016 | 2000*1000*700 |
| Binary optics projector | 1 | MICROSCOPE | Micat | 0.002 | 2016 | 400*300*150 |
FAQ
FAQ About Plastic Injection Mould Tooling.
Q1: What kind of molds do you make? Plastic injection mold, Die
casting mold or something else?
A1: Mainly plastic mold injection and Die casting mold.Could allso make stamping molds according to our customer’s
requirements.
Q2: What types of files do you accept (drawings)?
A2: STP, IGS, DXF, DWG, Cad Key PPT, STL, X_T, CATIA, UG files,
etc.
Q3: What kind of steel do you use for plastic mouldings?
A3: P20, 718, 8407, NAK80, H13, S136, DIN 1.2738, DIN 1.2344, etc.
Q4: Can you provide the steel and heat-treatment certificate?
A4: Yes, no problem.
Q5: Can you make the texture / text / heat_treatment /nitriding for
the inejction mold plastic?
A5: Yes, no problem.
Q6: How long is the lead-time for a plastic injection mold?
A6: It depends on the mold’s size and complexity. Normally 30~45
days.
Q7: Do you make spare parts for your customer?
A7: Yes, we will provide spare parts if needed.
Q8: How do you pack the china plastic moulds?
A8: Wooden box.
First : Daub rust preventive oil on the mold.
Second : We pack the mold with thin plastic film to avoid moisture.
Third : We put this plastic film packed mold in a wooden box, and
fix it avoid any movement.
FAQ About Injection plastic products
Q9: How many injection plastic mouldings machines do you have?
A9: 40 sets till now.
Q10: What is the minimum & maximum unit weight and size your
machines can produce?
A10: From 1 gram to 6000 grams weight.
Maximum size of unit plastic part: 1.5*1.5*1.5 meters.
Q11: What kind of plastic materials you usually use?
A11: PP, ABS,PC,POM,PA,HDPE,HIPE,PS,AS,PBT,PET,PMMA,PVC and so on.
FAQ About Worldwide Delivery
Q12: Can you deliver the plastic moulds or plastic products to our
factory?
A12: Yes, We have cooperated with many international logistics
companies for years.
And we have full experience to manage the delivery directly to the
client's factory or appointed warehouse.
